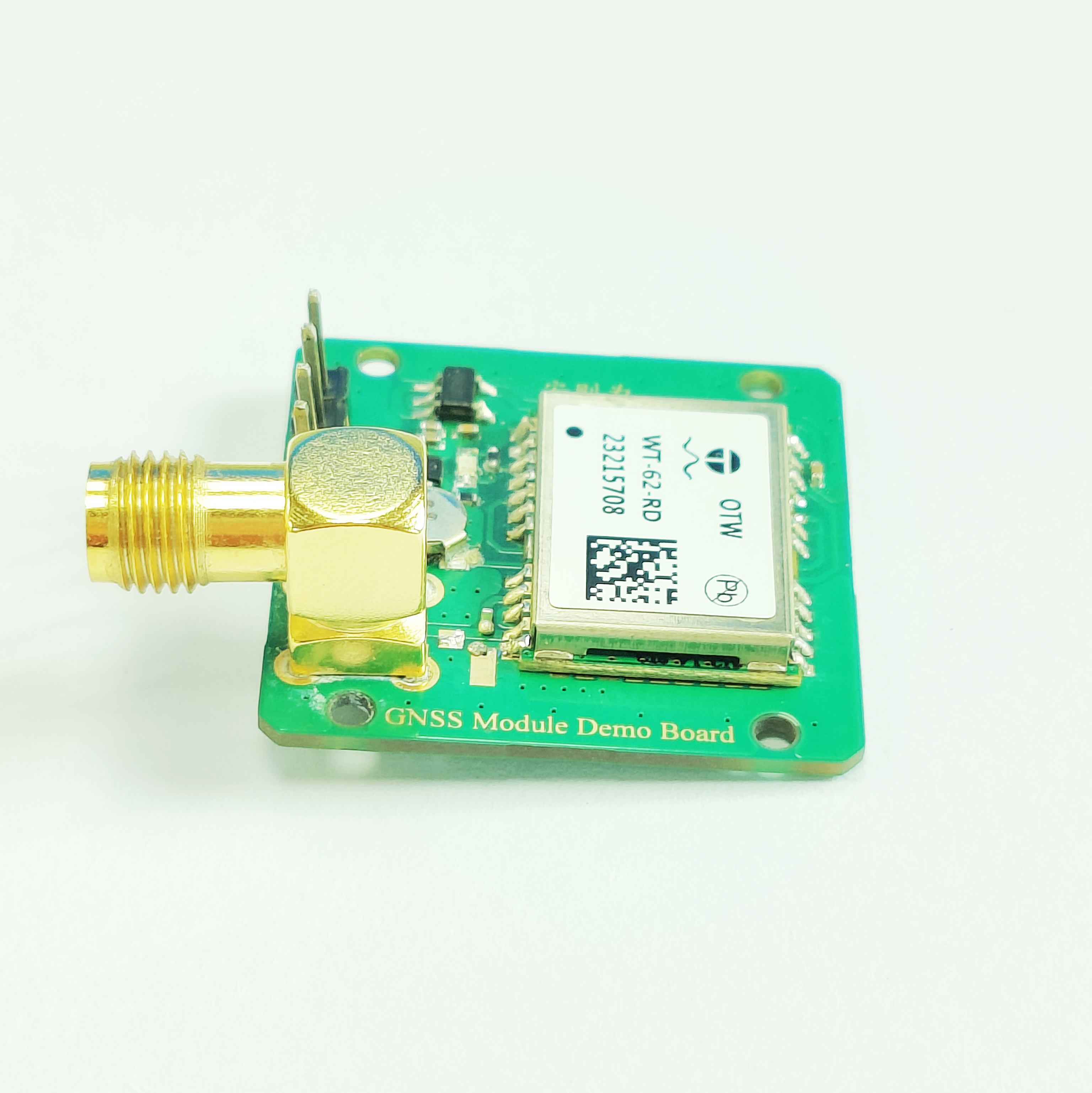

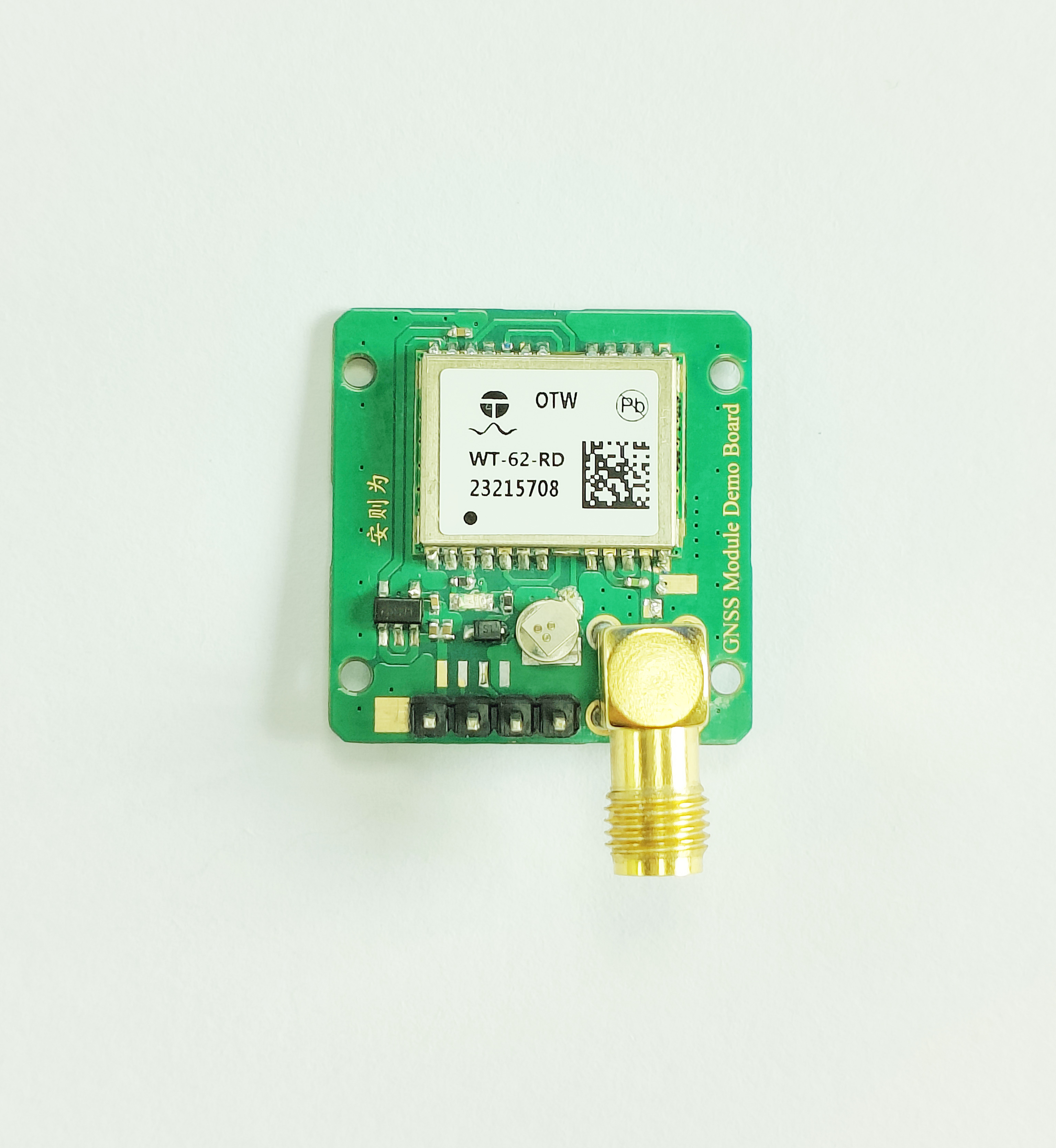

Dual-Frequency RTK DR GPS Module WT-62-RD for GIS Positioning

MOQ : 1 piece

Price : $13.58-16.25 / piece

origin : China

model : WT-62-RD(Development board)

form : GNSSmodule

Country or region of origin : shenzhen,guangdong,CHINA

brand : OTW

chip : XX

application : Positioning and mapping

mode of operation : GPS + GLONASS + GALILEO + BDS

baud rate : 4800bps-921600bps,Default115200bps

NMEAinformation : RMC、VTG、GGA、GSA、GSV、GLL

Update frequency : 0.25Hz-10Hz (default1hz)

voltage : 1.8v~3.3v

power dissipation : 108mW @ 1.8V

size : 25.6mm * 26.5mm * 11.8mm

Contact Now

Dual-Frequency RTK DR GPS Module WT-62-RD for GIS Positioning

Application:

● Intelligent iot, shared two rounds, crowdsourced maps ● GIS collection, handheld terminal, displacement monitoring ● Lawn mowers, farming machines, drones and other fields ● Vehicle positioning, personnel positioning, vehicle afterloading, etc

Features:

● Multi-system, can synchronously receive GPS (L1C/A/L5) BDS (B1I/B2a/B1C) GALILEO (E1/E5a) GLONASS (L1) four-system dual-frequency ● Built-in dual-frequencyRTK and inertial navigation fusion positioning algorithm ● Fast positioning can be achieved in a sheltered environmen

Module performance
Model	WT-62-RD(Development Board)
Receiver type	GPS/QZSS L1C/A & L5 BDS B1I/B1C & B2a GAL E1 & E5a GLONASS L1
Arithmetic	Integrated dual frequency+DR Fusion positioning algorithm
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	128
Sensitivity	Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 28seconds
Hot start	Average 1 seconds
Accuracy	Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
18Max Height	18000 m
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	0.25 Hz -10 Hz
Positioning mode	A-GNSS,Dual frequencyRTK+DR Fusion positioning
Port
Port	Pin arrangement/customization
Physical property
Type	24PIN LCC package
Size	25.6mm26.5mm11.8mm (+/- 0.5mm)
Power supply
Voltage	1.8V~3.3V
Power Consume	Running mode: 111mW@1.8V/131mW@3.3V, Standby mode: < 28μW
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
